endian_traits.h File Reference

Support for dealing with big and little endian platforms. More...

#include <cstdint>
#include <endian.h>

Include dependency graph for endian_traits.h:

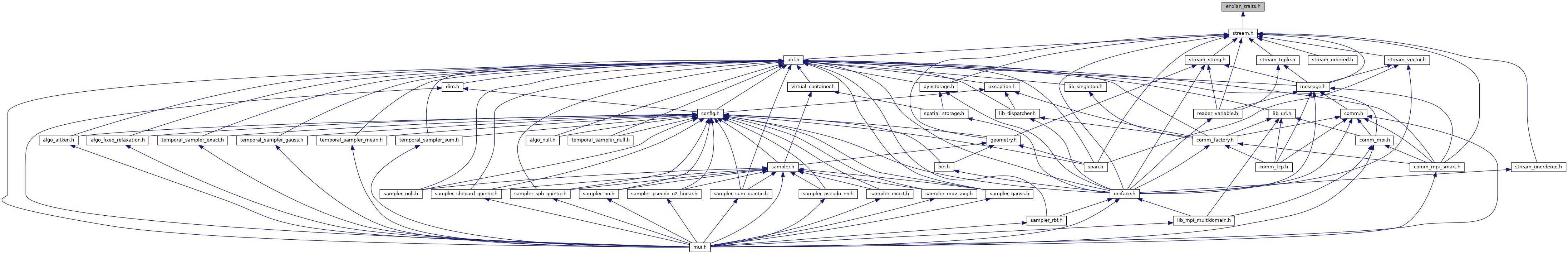

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	mui::detail::uint< 1 >
struct	mui::detail::uint< 2 >
struct	mui::detail::uint< 4 >
struct	mui::detail::uint< 8 >
struct	mui::detail::endian_converter< size_bytes >
union	mui::detail::endian_converter< size_bytes >::data_t
struct	mui::endian_traits< T, typename std::enable_if< std::is_integral< T >::value >::type >
struct	mui::endian_traits< T, typename std::enable_if< std::is_floating_point< T >::value >::type >

Namespaces
	mui
	mui::detail

Macros
#define	MUI_POSITIVE   true
#define	MUI_NEGATIVE   false
#define	MUI_INT_DEFINED   MUI_NEGATIVE
#define	MUI_CONVERT_FLOAT   MUI_CONVERT_INT

Detailed Description

Support for dealing with big and little endian platforms.

Author

R. W. Nash r.nas.nosp@m.h@ep.nosp@m.cc.ed.nosp@m..ac..nosp@m.uk

Date

14 November 2018

Currently this only supports big and little endian platforms, if you're on something odder, then this wont work.

The primary export of this header is a template struct endian_traits - see below for a details

You can configure endianness and conversion by defining one of the following

1. no endian options, in which case this header will try to figure it out but that probably only works on GCC
2. MUI_IGNORE_ENDIAN - this mode will never reorder the bytes of a multibyte number

3. (MUI_INT_BIG_ENDIAN ^ MUI_INT_LITTLE_ENDIAN) && (MUI_FLOAT_BIG_ENDIAN ^ MUI_FLOAT_LITTLE_ENDIAN)

   where:

   • MUI_INT_BIG_ENDIAN - this will assume that the host has a big endian representation of integers
   • MUI_INT_LITTLE_ENDIAN - this will assume that the host has a little endian representation of integers
   • MUI_FLOAT_BIG_ENDIAN - this will assume that the host has a big endian representation of floating values
   • MUI_FLOAT_LITTLE_ENDIAN - this will assume that the host has a little endian representation of floating values

Macro Definition Documentation

MUI_CONVERT_FLOAT

#define MUI_CONVERT_FLOAT   MUI_CONVERT_INT

MUI_INT_DEFINED

#define MUI_INT_DEFINED   MUI_NEGATIVE

MUI_NEGATIVE

#define MUI_NEGATIVE   false

MUI_POSITIVE

#define MUI_POSITIVE   true
